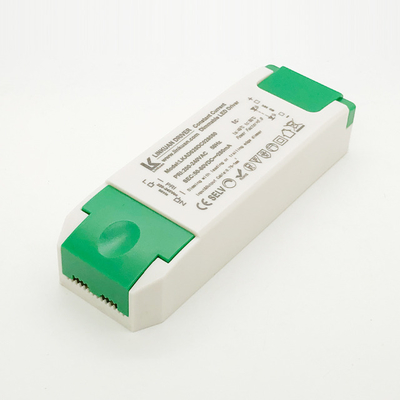

Triac Dimmable 24W Blink Free Driver 650mA 500mA Constant Current Led Driver CE ROHS Passed

1 Piece
MOQ
$2.00(1 - 49 Pieces) $1.00(50 - 499 Pieces) $0.50(>=500 Pieces)
цена
Triac Dimmable 24W Blink Free Driver 650mA 500mA Constant Current Led Driver CE ROHS Passed
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Features: Triac dimmable
Warranty(Year): 5-Year
Lighting solutions service: Project Installation
Model Number: LKAD026D
Output Power: 1 - 50W
Output Type: Single
Input Voltage: 200-240VAC
Output Frequency: 50/60Hz
Output Current: 700mA
Сертификация: CE standard
Size: L135xW45xH28mm
Efficiency: 85%
Power factor: 0.9
Type: Class 2 constant current
Current Accuracy: ±3%
degree of protection: IP20
Application: LED panel light
Warranty: 5 years
Основная информация
Сертификация: CE standard
Model Number: LKAD026D
Оплата и доставка Условия
Packaging Details: 1pc pack in 1 inner box, 100pcs in 1 carton
Supply Ability: 10000 Piece/Pieces per Month
Характер продукции
Product Description
What is TRIAC Dimming?
Dimmers have fast become a vital part of many lighting applications and installations. Dimmers allow you to set the level of light and save energy on the output and when teamed with an LED light source, this energy saving can be quite substantial. Phase-cut dimmers are the most common dimming control and are often referred to as TRIAC dimmers. Creating the ideal configuration of LED lamps with the TRIAC dimmer has, in the past, been a challenge, but the introduction of new TRIAC dimming LED drivers has made this much simpler. TRIAC dimming controls act as a high-speed switch and are used to control the amount of electrical energy passing to a bulb. A ‘trigger’ dictates what point the device starts to conduct the electricity, essentially “chopping up” the voltage waveform, stopping the voltage from being supplied at full load. The quicker the switch reacts the more power is let through and the later it reacts, the less power, resulting in a dimming of the bulb. This is very similar to more common Thyristor dimmers, however TRIAC dimming is less likely to produce “half wave” on failure or Hz flicker and therefore the lifespan of the LED’s are not as greatly reduced as they are with Thyristor dimmers. When using a TRIAC dimmer with LED light solutions and sourcing a TRIAC dimming LED driver you need to ensure it is actually a TRIAC semiconductor device as TRIAC dimmers are designed for resistive loads, which LED solutions are not. If the correct TRIAC dimming led driver is not sourced the lights will not perform as expected with the TRIAC wall dimmer; resulting in LED’s not dimming or creating a Hz flicker which will shorten the life of the LED’s.
Product Features
WHY USE A PHASE CUT (TRIAC DIMMABLE) LED DRIVER?
Phase cut LED drivers that can be used with leading edge (TRIAC) dimmers and leading edge dimmers that you find in most homes. This means that they are ideal if you are retrofitting LED lighting and want to be able to use the existing wiring and dimmer switches.They are also used in commercial retrofit projects. Most modern lighting control systems use either an analogue control signal, such as 1-10V, 0-10V or PWM to control the LED drivers, or the DALI lghting communications protocol. Typically, when installing LED lighting in a commercial project you will find that 0-10V, 1-10V, or DALI LED drivers are used. This sort of installation requires dedicated wiring to be run from the control systm to the LED driver, which means internal walls and ceilings need to be removed and replaced. With heritage sites it is not always possible to tear down walls and ceilings to run new wires. So, a solution that can work with existing wiring is required. Phase cut dimmable LED drivers are ideal because they don't require any dedicated wiring to be run to the LED driver. They can just be hooked up to the existiing wiring. If a DALI system is being used, then a simple DALI to trailing edge dimming converter can be installed.
Product Paramenters
INPUT
Input Voltage
200-240VAC
Input frequency
50/60Hz
Power Factor
0.9
OUTPUT
DC Voltage
27-42V/45-80V
Rated Current
700mA/320mA
Rated Power
29W
SETUP Rise Time
<0.5s
PROTECTION
Short circiut
Recovers automatically after fault condition is removed
Overload
Overload protected @110-130% above peak rating
Over Temperature
Shut down o/p voltage . re-power on to recover
IP Code
IP20
ENVIRONMENT
Working TEMP.
-30-+50℃ (refer to output load derating curve)
Storage TEMP.
-40-+80℃
Safety & EMC
Safety Standards
CE
EMC Test Stardands
CE
DIMENSION
135x45x28mm
Details Images
Certifications
Our products have TUV,CE,SAA,UL,FCC,CCC certifictes.
Installation Dimension
Installation Diagram
Related Products
Constant Voltage Triac Dimmable LED Driver for LED strips and LED Neons lights

Model:LKAD018V-TD

Input voltage:200-240Vac
Output Power: 24W
Output Voltage: 12/24Vdc
Output Current: 2A/1A
Dimming type: Triac Dimming

Model:LKAD060V-TD

Input voltage:200-240Vac Output Power: 50W Output Voltage: 12/24Vdc Output Current: 4A/2A Dimming type: Triac Dimming

Model:LKAD070V-C

Input voltage:200-240Vac Output Power: 60W
Output Voltage: 12/24Vdc Output Current: 5A/2.5A Dimming type: Triac Dimming

Model:LKAD0100V-C

Input voltage:200-240Vac Output Power: 2100W
Output Voltage: 12/24Vdc Output Current: 8A/4A Dimming type: Triac Dimming

Model:LKAD0200V-C

Input voltage:200-240Vac Output Power: 200W
Output Voltage: 12/24Vdc Output Current: 16.5A/8.3A Dimming type: Triac Dimming
Company Profile
About Linkuan Power
Guangdong Linkuan Smat Tech Co., LTD. (hereinafter referred to as Linkuan Smart), formerly known as Dongguan Linkuan Semiconductor Lighting Co., Ltd., was founded in 2007. It is located in Dongguancity, a famous manufacturing city in China.The company plant area is about 4500 square meters, the registered capital is 10 million yuan, the staff is about 150 people, inclduing 30 management, engineering and technical persons.The company has 4 automatic production lines, 2 wave soldering machines, 5 sets of automatic constant temperature burning-test equipment, ultrasonic wave equipment and other efficient production equipment.
Factory Show
R&D Ability
Our Team
Delivery
Fast Delivery
Samples orders: 1-3 days Less than 50pcs should be sample order to us
OEM orders: 7-10 days Avaialbe for quantity within 1000pcs and 80W LED drivers
FAQ
1. What are your market reach throughout the region? Our markets around the world in every corner, we have three years of experience in foreign trade, our customer base has, we have worked with us in every country buyers and producers.
2. What is your main product line is made? We mainly produce led Power Supply and led Drivers, including drivers special for MR16 bulbs, tube series, waterproof series, SAA series, TUV series and UL series with both dimmable and non-dimmable. We also have 0-10V dimming and DALI dimming drivers for your option.
3. Your factory or trading company? We are a factory, we provide OEM/ODM services. 4. You have the ability to do independent research and development? Our engineering department has 4-5 people, we have the research and development capabilities. We also collect regularly each customer feedback, product improvement and new product development. 5. If I have a question I would like advice on how to contact you? You can leave messages directly through major inquiry or send e-mail to consult us. 6. What will you provide services? If you do not mind, you can tell us the following information, you are factories, wholesalers, purchasing, dealers, consumers or do engineering,design, or home. We can provide a detailed explanation to you. You will also patiently answered every question. We have established a customer complaint side, if you are not satisfied with our service, you can directly tell us via e-mail or telephone. We answer all questions for you.
