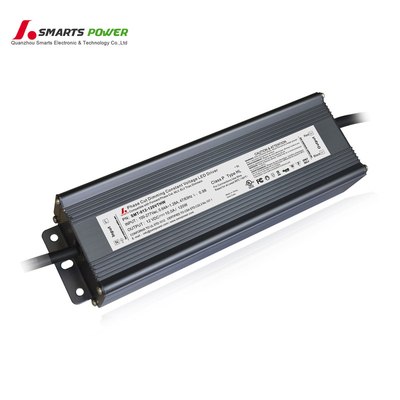

Name: 12V 10A Rainproof LED Power Supply With Triac Dimmable LED Driver 120W 230*70*46mm
Brand: 12V 10A Rainproof LED Power Supply With Triac Dimmable LED Driver 120W 230*70*46mm
SKU: SMT-012-120VTHW
Price: 38.00 USD
Availability: InStock
Rating: 4.8 (187 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Warranty(Year): 7-Year

Lighting solutions service: Lighting and circuitry design, led power supply 10a

Model Number: SMT-012-120VTHW

Output Power: 120W

Output Type: Single

Input Voltage: 100~277V AC

Output Frequency: 50/60Hz

Output Current: 10A

outer case: aluminium cover

IP rate: IP67

dimming mode: triac dimmable

working mode: constant voltage type

size: 230*70*46mm

pf: >0.95

efficiency: > 98%

certificate: UL(E507826),CE,FCC,ROHS approval

warranty: 7 years warranty

item: rainproof led power supply

Основная информация

Сертификация: UL(E507826),CE,FCC,ROHS approval

Model Number: SMT-012-120VTHW

Оплата и доставка Условия

Packaging Details: inner bo-white box +Standard Export Outer Carton.

Supply Ability: 10000 Piece/Pieces per Month

Характер продукции

12V 10A Rainproof LED Power Supply with Triac Dimmable LED Driver 120W

Product Description

These Rainproof LED Power Supply are the perfect choice for LED panels, LED Strips, LED Cove Lighting and various commercial and residential LED applications. The VTH version includes a wiring compartment to enable easy-installation and eliminates the need of a J-Box.

Aluminum metal housing, easy for heat dissipation and ensure stability. 100% Waterproof IP67 protect for outdoor use

Automatic protection for: short circuit, overload, over voltage, over current, high temperature. Protection type: Hiccup mode, auto-recovery after fault condition is removed

model		SMT-012-120VTHW	SMT-024-120VTHW
Output	DC Voltage	12V	24V
	Voltage Accuracy	±0.5V	±0.5V
	Rated current	10.00A	5.0A
	Rated power	120W	120W
Input	Voltage Range	100~277V AC
	Frequency Range	47~63HZ
	THD(Typ.) @full load	<20%
	Power Factor ( Typ.)	0.99@120VAC 0.96@277VAC	0.98@120VAC 0.96@277VAC
	Full Load Efficiency(Typ.)	>82%	>82%
	AC Current(Typ.)	1.71A/110VAC
	Inrush Current (Typ.)	20A, 50%, 1.6ms
	Leakage current	<0.5mA/110V
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
	Over temperature	100℃±10℃ shut down o/p voltage, automatically recover after cooling.
	Over Loading	≤120% constant current limiting, auto-recovery
	Over voltage	<140VAC(90~135V) , <270VAC(170~265V)
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC	Safety standards	UL8750
	Withstand voltage	I/P-O/P:1.88KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	FCC Part 15 B
	EMC IMMUNITY	Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)
Others	Net Weight	1.1Kg
	Size	2307043mm(LWH)
	packing	329279176mm , 10PCS/ctn
Notes	1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation .
100-277Vac\UL(E507826)\IP20

Mechanical Specification

Input power cord: AC (L), (N), and earth wire (G)

Output Red is(DIM+),Black is(DIM-)

Dimming Operation

1) Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

2) The Pulse-Width Modulation (PWM) of output voltage can be adjusted by the input terminal of the AC phase line(L) by connection a phase/triac dimmer.

3) Compatible with Forward phase, leading edge, Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.

4) please try to use the small power dimmers with power at least 1.5 times as the output power of the driver., which can be accessed to a wider dimming range, high-power dimmer is difficult to achieve the output

current to zero.

Derating Curve

Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

Simple Connection Diagram
