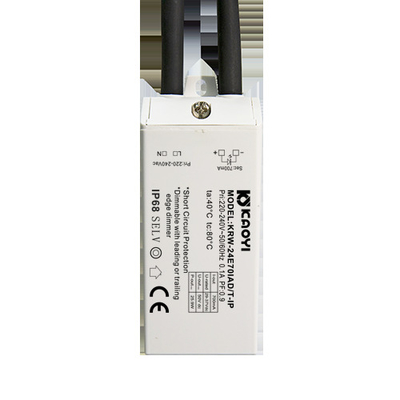

IP68 Waterproof LED Power Supply 24W 700mA 30-38V Dimmable Constant Current LED Driver KRW-24E70IAD/T-IP

500 Pieces
MOQ
$10.10(500 - 1999 Pieces) $9.10(2000 - 4999 Pieces) $8.60(>=5000 Pieces)
цена
IP68 Waterproof LED Power Supply 24W 700mA 30-38V Dimmable Constant Current LED Driver KRW-24E70IAD/T-IP
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty(Year): 5-Year
Lighting solutions service: Lighting and circuitry design
Product Weight（kg）: 0.09
Model Number: KRW-24E70IAD/T-IP
Output Power: 24W
Output Type: Single
Input Voltage: 220-240V
Output Frequency: 50/60HZ
Output Current: 700 mA
Dimming mode: Leading edge or Trailing edge
Flicker Percentage: <35%
IP Rating: IP65
Protection: OLP, SCP, OVP
Сертификация: TUV
Dimension: 79.5*32.8*25.5mm
Luminous Efficacy(lm/w): 80
Основная информация
Сертификация: TUV
Model Number: KRW-24E70IAD/T-IP
Оплата и доставка Условия
Packaging Details: Customized packaging
Характер продукции
Products Description
Dimmable Waterproof Drivers
Our drivers are tiny in size with high ingress protection. This series is compatible with all phase-cutting dimmers with a compensation circuit within to output the smoothest dimming curve. By integrating our flicker-free technology into our products to keep flicker percentage below 3% at all dimming range, an even healthier lighting is provided.
The circuit is specially designed to connect with multiple loads, allowing all loads to perform identically on dimming underwater.
Product Parameter


KRW-12E35IAD/T-IP
KRW-20E54IAD/T-IP
KRW-24E70IAD/T-IP
Input
Input Voltage A.C.(Vac)
198-264V
198-264V
198-264V
Nominal Voltage (Vac)
220-240V
220-240V
220-240V
Input Current (A)
0.05A@240V
0.09A@240V
0.1A@240V
Power Factor (Typ.)
>0.9
>0.9
>0.9
Input Frequency (Hz)
50/60Hz
50/60Hz
50/60Hz
Efficiency
83%
83%
83%
THD
<20%
<20%
<20%
Soft Start Time
<0.5s
<0.5s
<0.5s
Output
Nominal Output Voltage (Vdc)
36V
36V
36V
V-Out (Max. Voltage)
30-38V
30-38V
30-38V
Nominal Output Current (mA)
350mA
540mA
700mA
Output Current Tolerance
5%
5%
5%
Flicker Percentage
<35%
<35%
<35%
Output Power (W)
12W(max)
20W(max)
24W(max)
Protection
Overload Protection (OLP)
✔
✔
✔
Output Short-Circuit Protection (SCP)
✔
✔
✔
Over Voltage Protection (OVP)
✔
✔
✔
Environment
Ta(°C)
40°C
40°C
40°C
Tc(°C)
80°C
80°C
80°C
Humidity
80
80
80
IP Rating
IP68
IP68
IP68
Certification Standards
TUV CE
TUV CE
TUV CE
Dimension (mm)
79.5*32.8*25.5
79.5*32.8*25.5
79.5*32.8*25.5
Weight
90g
90g
90g
Warranty
5 years
5 years
5 years


Details Images



Product Dimension
Wiring Diagram
Quality Control Process
Technology
Let alone the mysteries abound and excitement grows.

There are infinite possibilities of lights,
whereas the era ahead is built upon a bed of breakthrough technologies.
As a member of DiiA and ZHAGA Consortium,
our in-depth knowledge to dimmers, drivers, and heat diffusion structure
allows us to turn our imaginative ideas into reality.

We kept on racing ahead along the way,
with a large number of patents and certifications being the best
advertisement for product development.





FAQ


Can you provide customized service?
Yes, we provide OEM&ODM service, products can be branded with your logo.

Can you provide samples before order?
Yes. Please feel free to contact us for samples. Some can be free.

What is the lead time?
It depends on the order quantity and the season that order is placed. Generally 3-7 days for samples and 35-45days for mass production. Please kindly contact us to check the accurate lead time.

Where is the loading port?
Normally Xiamen, China. We can deliver the goods to other ports to ship as well.
