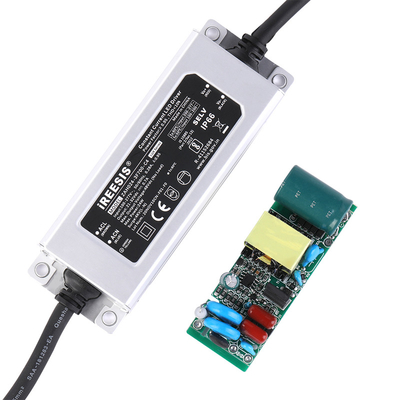

Name: Outdoor Light Ireesis Most Popular Easy Operation High Power Drivers New Led Light Bulbs Adjustable Led Driver
Brand: Outdoor Light Ireesis Most Popular Easy Operation High Power Drivers New Led Light Bulbs Adjustable Led Driver
SKU: LUX001
Price: 15.00 USD
Availability: InStock
Rating: 4.9 (199 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Warranty(Year): 7-Year

Lighting solutions service: Lighting and circuitry design

Product Weightï¼ˆkgï¼‰: 1

Model Number: LUX001

Output Power: 51 - 100W

Output Type: Multiple

Input Voltage: 220V

Output Frequency: 1

Output Current: 600 mA, 1200 MA

Brand: iREESIS

Сертификация: EMC

Protections: Open circuit / Short circuit/Overload

Application: Outdoor Light

Waterproof rate: IP66

Usage: Electronic Products Led Light

Size: 220x64x35

Type: Constant Current

Output Voltage: 12V Max Voltage 12.8V DC

Keyword: Waterproof Electronic Led Driver

Luminous Efficacy(lm/w): 1

Основная информация

Сертификация: EMC

Model Number: LUX001

Оплата и доставка Условия

Packaging Details: carton box

Supply Ability: 150000 Piece/Pieces per Month

Характер продукции

Ireesis Most Popular Easy Operation High Power New Led Drivers Adjustable Led Bulbs Driver

General Specification
AC input voltage range			85~305Vac（Can withstand 440Vac voltage stress for up to 48 hours）
AC input frequency range			47~63Hz
AC inrush current (max.)			Cold start , 50A at 230Vac，Full load
Over voltage protection			115% ~135% rated output volteage
Turn on delay time			< 1.0 S@ Full load
Dielectric strength			>3.75KV (L~N)
Ingress protection			IP66
Working temperature			-30 ~+ 65℃
Working humidity			20%~90% R.H.
Storage environment			-40 ~+ 85℃, 0%~95% R.H.
Safety standards			Design refer to EN60950-1, EN61347-2-13
EMC standards			Design refer to EN55015,EN61000-3-2,EN61000-3-3
Connection	Input	1.0²× 3C (Line: Brown, Neutral: Blue, Ground: Yellowish green ), Length:40cm
		Output	1.0²× 2C (+: Red, -: Black) ,Length:25cm
Dimension ( L×W×H )(mm)			220x64x35

Features

∙ Nominal voltage:100-277Vac / Full range
∙ Power factor: ≥ 0.95 / Full range
∙ Total Harmonic Distortion(THD): ≤ 10%
∙ Protections: Open circuit / Short circuit/Overload
∙ Cut off：Input overvoltage & undervoltage cut off
∙ OTP: Tc ≥ 85℃，Reducing Current
∙ Constant current design
∙ Low cost , high reliability
∙ Current ripple: < 5%
∙ Cooling by free air convection
∙ Surge：4KV/6KV (L~N)
∙ Can withstand input voltage of 440V for 48hrs
∙ Suitable for LED flood lighting,street lighting
∙ 7 years warranty, MBTF > 30000 hours

LUX Series model list (C.C. mode)

OEM/ODM

CUSTOMIZED SERVICES

Constsnt Current Design

Safe & High Reliability

Surge Protection

Fujie Optoelectronics (huizhou) Co., Ltd.

Iresis photoelectricity (zhongshan) co., ltd. since its inception in 2017, continue to focus on LED power products R&D, manufacturing, sales, technical servicesfter long-term unremitting efforts. it now has a certain market share in China. With the increasing growth of import and export trade, to further meet the import and export needs of traders. We provide businesses with professional, personalized and all-round services, our company has formed a complete external power supply system.

Q1. Are you a manufacturer?
A: Yes, we are the manufacturer.We have one factory in Zhongshan, Guangdong, China.

Q2. Can I get sample?
A: Sure, If you need sample, pls tell me your spec need, or tell me your led light info, then i will recommend you
suitable led driver with good price, after confirm details, we will arrange the samples for you to test. Welcome sample
order to test and check quality.

Q3. Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Use your own design is ok. Please inform us
formally before our production and confirm the design firstly based on our sample.

Q4: Does your company accept OEM&ODM?
A: Yes, welcome OEM&ODM.

Q5:What is your advantages?
1. OEM/ODM is welcome, over 15 years of experence.
2. High efficiency, low power consumption led light driver.
3. CE(TUV),RoHs, SAA, C-tick,RCM, FCC and ETL approved.
4. Stable quality, burn-in tests with 100% full load for more than 4 hours.
5. Over-heat, over-load, short-circuit & open-circuit protection.
6. Offer 2,3 or 5 years warranty and maintain our repair rate below 0.3%.
7. We will apply 0.3% spare parts on bulk orders.
