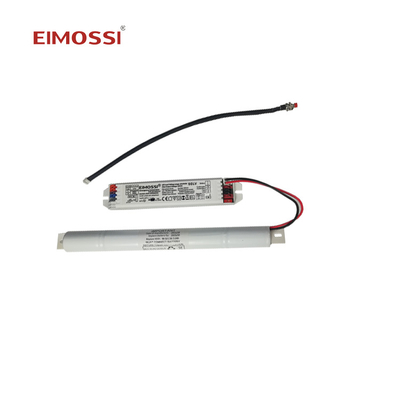

Constant Power 3-50w 2-3hours Emergency Led Lighting Kit Driver For Led Panel Light

10 Units
MOQ
$20.00(10 - 99 Units) $19.00(>=100 Units)
цена
Constant Power 3-50w 2-3hours Emergency Led Lighting Kit Driver For Led Panel Light
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Color Temperature(CCT): 2700-6500K
Input Voltage(V): AC 220V( ± 10%)
Support Dimmer: No
Lifespan (hours): 15000
Working Time (hours): 15000
Product Weight（kg）: 1
Bulb Type: LED
Battery Type: Ni-CD
Material: Plastic
Usage: Emergency driver led
Specifications: 3W 6W
Warranty(Year): 2-Year
Lighting solutions service: Lighting and circuitry design, Project Installation
Light Source: LED
Emitting Color: White
Product name: 3-50w 2-3hrs emergency led lighting kit driver For led panel light
Input voltage: 220V AC
Led moudle: DC 15-55V
Input power: Max 200w led with driver
Output power: DIP set 3 6w
Mounted: screw
Work mode: Maintained/ Nonmaintained
Indicator: Green LED-Charging / Power
Output Characteristic: Constant Power
Сертификация: CE
Основная информация
Сертификация: CE
Оплата и доставка Условия
Packaging Details: neutral packing
Supply Ability: 100000 Piece/Pieces per Month
Характер продукции
Recently,we helped my client to test the driver whether compatible with our EPMM55N emergency driver led module and how to operate and use.Fortunately, everything goes well.
LET'S GO TO CLOSE MORE DEETAILS.

· What kind of LED lamps can match EPMM55N?

EPMM converter is designed for use in emergency luminaries in conjunction with LED modules and LED control gear from most manufacturers.
It is compatible with LED light modules for linear area as well as downlight applications and can be used with normal fixed output or dimming LED control gear of up to 200W power. The forward voltage range of 10V to 55V , makes it ideal for use with most LED modules.
Product Specification:
Item:AMX-EPMM55N
Product size: 183*32*25mm (Converter)
Led module forward voltage range:10-55V
Operation: Non-maintained
Power source: 220-240VAC~50/60Hz
(Customized:100-130VAC~50/60Hz)
Output power: 3/6W Dip Set
Electronic connections: Push wire terminals
Recharge period: 24hours
Emergency time:3 Hours
Battery:6V NICD/NIMH
Indicators: Φ5 LED Green: charge
Test: M7 push on button
Working temperature: 0°C~40°C
IP Rating: IP20
Suited for: Indoor

· Can we purchase EPMM55N to compatible with our own luminaires? If I have already had some in my home.

    Yes, you can. But the prerequisite is that you are sure EPMM55N emergency driver can be compatible with the driver model. This is
the reason why I always suggest my client purchase sample to test by himself.

· Can we purchase EPMM55N inverter from you,and I will purchase the battery parts from my side?

Yes,you can. The same battery specifications and parameters in the specification must be selected to ensure normal operation.

· How to wire EPMM55N to the led lamp, if I want a non-maintained working mode?

· How to wire AMX-EPMM55N to the lamp, if I need a maintained working mode?


What if it is more than one lamp?


· What is the maximum power of lamps that can be equipped?

It is equipped Max.200W lamps with constant current led extrnal driver


· If I want to change the emergency power by myself, how should I adjust it?

EPMM55N is constant emergency power,3w or 6w is set by dip

· After the emergency power is changed, what will happen to the emergency time?

Battery capacity is satisfied for 3w 3h=6w 1.5h;6w 3h=3w 6h
item
Emergency Power
Emergency Duration
Battery Type
AMX-EPMM5503N
3W
1 hour
NICD/NIMH
AMX-EPMM5503N
3W
2 hours
NICD/NIMH
AMX-EPMM5503N
3W
3 hours
NICD/NIMH
AMX-EPMM5506N
6W
1 hour
NICD/NIMH
AMX-EPMM5506N
6W
2 hours
NICD/NIMH
AMX-EPMM5506N
6W
3 hours
NICD/NIMH

·Is EPMM55N only 220-240VAC? If our grid is not stable, I feel wide voltage range is better.

  Yes,but wide voltage range can be customized.
Compare with AMX-EPMM55N working for 220-240VAC and wide voltage range, apperance and price are different.

·I want to have a box to put the emergency inverter and battery into it, can it be integrated?

  Sure,it can be done.

· After wiring, how to test whether EPMM55N is connected correctly?

The Green indicator is light,and test the button,the led module will be in emergency...

· Can you show me more details?

NOTICE!!!

The battery product is a special product, please confirm that the selected logistics has the carrying capacity before placing the order, so as to avoid returning the goods!


· How about the delivery time?

  3-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.

·What's warranty?

  2 years.

· Do you have any products recomend?

Yes,we also have more kinds of emergency products,if there are not,can visit our web:eimossi.com or inquiry to us on line.

Are you interested? Welcome inquiry.
Zhongshan Aimoxi Electric Co., Ltd.
Ms: Christina
Mobile:8613924940924
Whatsapp:8613924940924
Wechat:8613924940924
Skpye:christina-liu-aimoxi
QQ:892336238
TEL:0760-22324302
FAX:0760-22324300
Kanglong 5th Street, Industrial Park, Henglan, Zhongshan, Guangdong, China
